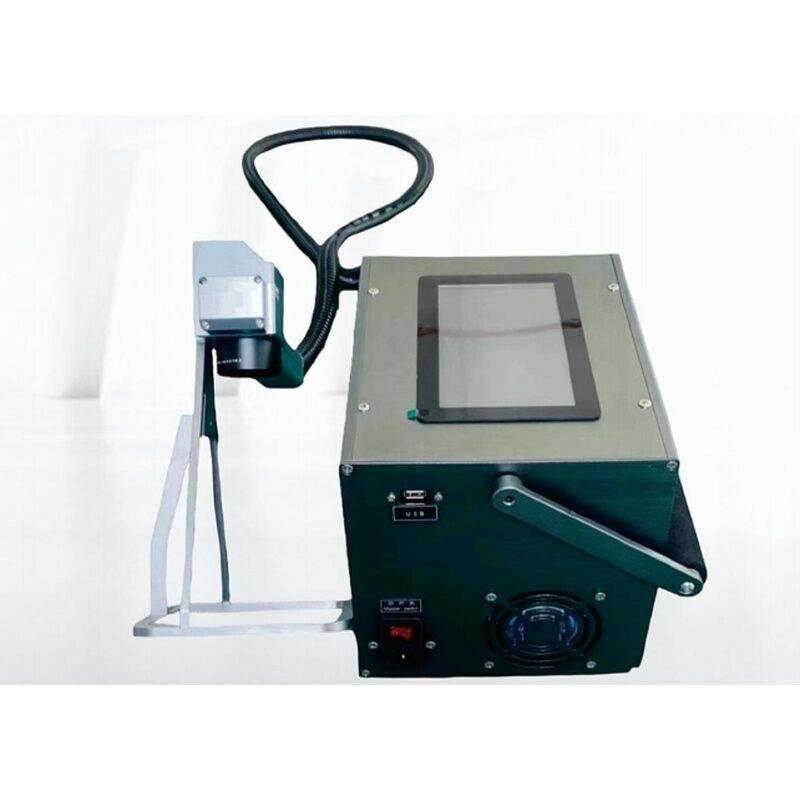

Portable Handheld Laser Marking Machine Mini Portable Fiber Laser Marker Handheld Laser Marking Machine

Non-contact processing, no damage to the workpiece, no tool wear, and high marking quality.

The laser marking head is easy to replace and maintain, with a service life of up to 100,000 hours.

• Low operating cost: No consumables, maintenance-free
• Wide range of applicable materials: Suitable for all metal materials and some plastic materials
• Rich marking content: Characters, numbers, QR codes, barcodes, etc.

• All-in-one compact design: Simple and portable, multi-purpose in one machine
• Battery-powered design: Supports 12-16 hours of continuous operation
• Handheld marking: Portable and flexible operation
• Multi-material marking: Compatible with metals and partial plastics
• Integrated computer design: Built-in control system
• High-precision marking: Ensures clear and accurate results

• Built-in lithium battery design: 24V/12Ah large-capacity lithium battery, up to 12-16 hours of operation
• Portable design, wireless marking: No external power supply required for on-site work
• All-aluminum body, compact and lightweight: Net weight only 1.25kg, ergonomic design for comfortable holding and easy operation
• Linux system configuration: 8-core processor, high stability, fast response, anti-crash and anti-shutdown

• Linux system with multi-user permission management
• 3 marking modes available: Static, Simulation, Encoder
• Red light positioning for precise alignment
• Power-off data protection, with real-time alerts for start / running / completion / fault status
• Anti-mis-trigger detection via material reflection, with overspeed alarm
• Automatic cross-point removal to avoid mark overlapping
• Supports single and dual code generation
• Multilingual interface: Chinese, English, Arabic, French, German, Russian, Spanish, Japanese, Korean, etc.

• Fonts: Chinese, English, numeric and standard character libraries
• File formats: BMP, DXF, HPGL, JPEG, PLT
• Barcodes: Standard — CODE39, CODE128, CODE126; Optional — QR code, Data Matrix

• Power supply: AC 220V / 50Hz
• Power consumption: 200W
• Net weight: 7.5kg (main unit) + 0.8kg (marking head)
• Dimensions: 256*205*217mm (main unit); 310*60*70mm (marking head)

• Temperature: 0°C – 45°C
• Humidity: ＜95% (non-condensing)
• Vibration-free and dust-free workspace
